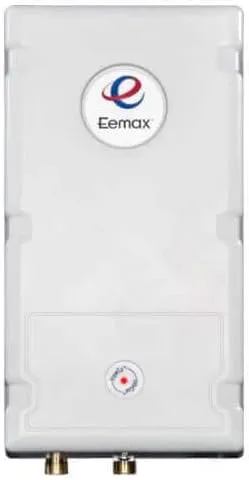

Specifications

• Volts: 120V
• kW: 2.4kW
• Amps: 20A
• Temp Rise Fat 0.3 GPM: 80 Degrees
• Recommended Wire Size:14 AWGFeatures
  • Includes: Emergency eye wash fountains (EE option - 90 F max.)
  • Lowest activation in industry with 0.2 GPM turn on flow
  • Microprocessor temperature control with digital display for thermostatic accuracy
  • Field adjustable set point range between 70-140 F. Factory set at 120 F (3.5kW and below set at 105 F). Special settings of higher or lower range available based on options
  • Silent Operation (except for SPEX0122240T)
  • Mounts in any orientation
  • Flow meter activates heater only on demand (no standby heat loss)
  • Install unit at point-of-use to eliminate long pipe runs
  • Eliminate costly mixing valve
  • Compact size fits almost anywhere for flexible installation; suitable for ADA compliant facilitiesl

  Specifications:

  • Flow Rate: 0.3 - 2 GPM
  • Voltage: 120v
  • Amperage: 20
  • KW (120V): 2.4
  • Warranty: 5 Year Limited Warranty Against Leaks/1 Year Limited Warranty on Parts and Electrical Components
